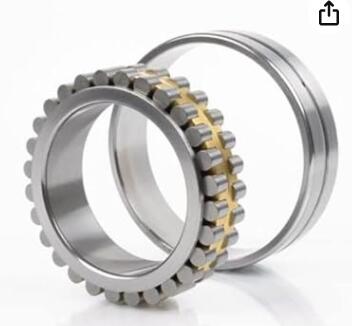

NN3036-AS-K-M-SP FAG Cylindrical Roller Bearing Double Row 180x280x74mm Bearings wholesale price | On sale
if you are interested in it ,
Get free samples :sales@edabearings.com
Technical Details
Brand FAG
Item Weight 38.1 pounds
Dimensions
Width of lubricating groove ns 12.20 mm
Minimum chamfer dimension rmin 2.10 mm
Diameter lubrication hole ds 6.30 mm
Raceway diameter outer ring E 255 mm
Axial displacement s1 4.80 mm
Mounting dimensions
Maximum recess radius ra max 2.10 mm
diameter of housing shoulder Da 260 mm
Diameter shaft shoulder da 209 mm
diameter of housing shoulder tolerance H12
diameter shaft shoulder tolerance h12
Main Dimensions & Performance Data
Limiting speed for oil lubrication nG Oil 3,300
Fatigue load limit, radial Cur 118,000
Basic dynamic load rating, radial Cr 570,000
Outside diameter D 280 mm
Limiting speed for grease lubrication nG Grease 2,850
Basic static load rating, radial C0r 1,000,000
Width B 74 mm
Bore diameter d 180 mm
