Product details
Item Weight ‏ : ‎ 14.2 Pounds

Manufacturer ‏ : ‎ FAG

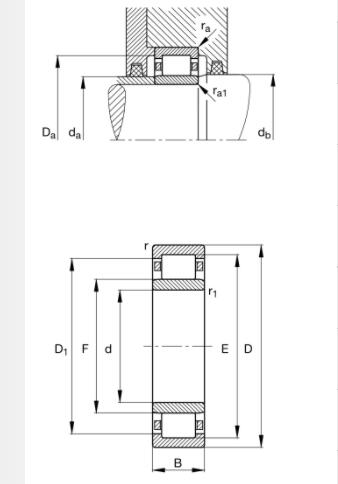

d Bore diameter 75 mm
D Outside diameter 190 mm
B Width 45 mm
Cr Basic dynamic load rating, radial 325.000 N
C0r Basic static load rating, radial 295.000 N
Cur Fatigue load limit, radial 38.000 N
nG Limiting speed 6.700 1/min
nϑr Reference speed 4.100 1/min
≈m Weight 7,1 kg
da min Minimum diameter shaft shoulder 91 mm
da max Maximum diameter of shaft shoulder 103 mm
db min Minimum shaft shoulder 107 mm
Da max Maximum diameter of housing shoulder 174 mm
ra max Maximum recess radius 2,5 mm
ra1 max Maximum recess radius 2,5 mm
rmin Minimum chamfer dimension 3 mm
r1 min Minimum chamfer dimension 3 mm
s Axial displacement 4,5 mm
E Raceway diameter outer ring 160,5 mm
F Raceway diameter inner ring 104,5 mm
D1 min Minimum rib diameter outer ring

NU415-XL-M1-C3 FAG Cylindrical Roller Bearing 75,00x190,00x45,00mm

---
