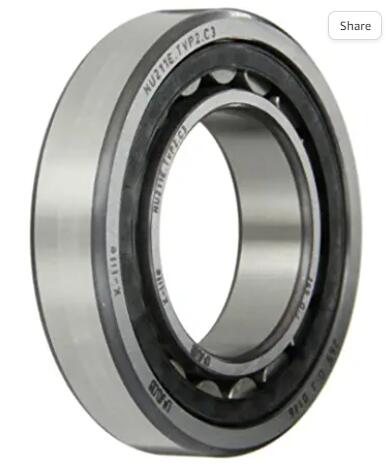

 Single Row, Straight Bore, Removable Inner Ring, High Capacity, Polyamide Cage, C3 Clearance, 55mm ID, 100mm OD, 21mm Width

Product details
Brand FAG Bearings
Material Polyamide Cage
Item Dimensions LxWxH 2.17 x 0.83 x 3.94 inches
Item Weight 1.46 Pounds
Specification Met Din Iso 281, Din 620-4, Din 623-1, Iso 683-17, Iso 286, Din 5412-1, Iso 281
Bearing Type Ball Bearing
Single row cylindrical roller bearing for applications that support high radial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
Non-locating bearing (two ribs on the outer ring, none on the inner ring) for allowing outer and inner rings to axially displace relative to each other from the central position
Polyamide cage is lightweight and produces less noise and vibrations than brass cages
Removable inner ring in open bearing allows for lubrication in place
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 55 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease

Inside Diameter 55 millimeters
Item Diameter 100 millimeters
Item Weight 1.46 pounds
Material Polyamide Cage
Measurement System Metric
Model Number NU211-E-TVP2-C3
Number of Items 1
Part Number NU211-E-TVP2-C3
Specification Met Din 620-4 , Din 623-1 , Iso 281 , Iso 286 , Iso 683-17 , Din 5412-1 , Din Iso 281

---
