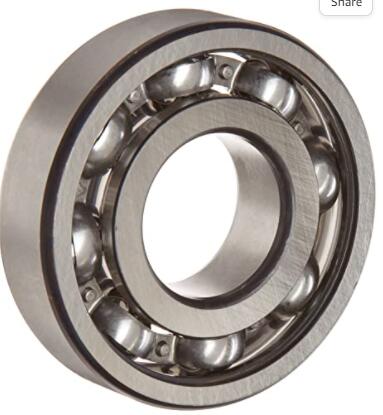

 Single Row, Open, Steel Cage, C3 Clearance, Metric, 40mm ID, 90mm OD, 23mm Width, 18000 rpm Maximum Rotational Speed, 5600 lbf Static Load Capacity, 9650 lbf Dynamic Load Capacity


Product details
Brand FAG Bearings
Material Steel Cage
Item Dimensions LxWxH 1.57 x 0.91 x 3.54 inches
Specification Met Din Iso 281, En 10139, Din 623-1, Din 620-4, Iso 683-17, Din 625-1, Iso 286, Sae J403, Iso 281
Bearing Type Ball Bearing
Compatible Lubricant Grease
Deep groove geometry for high speeds and supporting both radial and axial loads
“Medium” bearing design for average to above average radial loads and light to average axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
Sheet steel cage evenly spaces balls for reduced friction, vibration, and noise
Open bearing for lubrication applied in place
Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 40 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 5600 pounds
Ean 4012801074650
Inside Diameter 40 millimeters
Item Diameter 90 millimeters

---
