Specifications:

Bore Type:-Round
Closure Type:-Double Shielded
Row Type &a; Fill Slot:-Single Row Non-Fill Slot
Internal Clearance:-C3
Operating Temperature Range:--30 to +120 °C
Dynamic Load Capacity:-70000 N
Static Load Capacity:-49000 N
Precision Rating:-ABEC 1 (ISO Class Normal)
Finish/Coating:-Uncoated
Cage Material:-Steel
Outer Ring Width:-25 mm
Fillet Radius:-1.5 mm
Maximum RPM:-6000 RPM
Standards Met:-DIN 625-1
Series:-62
Weight:-2.62 lbs


Product details
Brand FAG (Schaeffler)
Material Alloy Steel
Certification Din 625-1
Bearing Type Ball Bearing
Bore Type:-Round
Closure Type:-Double Shielded
Row Type &a; Fill Slot:-Single Row Non-Fill Slot
Internal Clearance:-C3
Operating Temperature Range:--30 to +120 °C

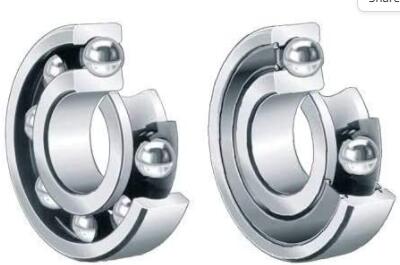

FAG (Schaeffler) 6215-2Z-C3 Radial/Deep Groove Ball Bearing - Round Bore, 75 mm ID, 130 mm OD, 25 mm Width, Double Shielded, C3 Internal Clearance

---
