Specifications for this item
Bearing Type Ball Bearing
Bore Diameter 45 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 3280 pounds

Item Diameter 75 millimeters
Item Weight 10.00 pounds
Material Alloy Steel
Maximum Rotational Speed 11000 rpm
Measurement System Metric
Model Number 6009C3
Number of Items 1
Part Number 6009-C3
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 4680 pounds

Width 16 millimeters

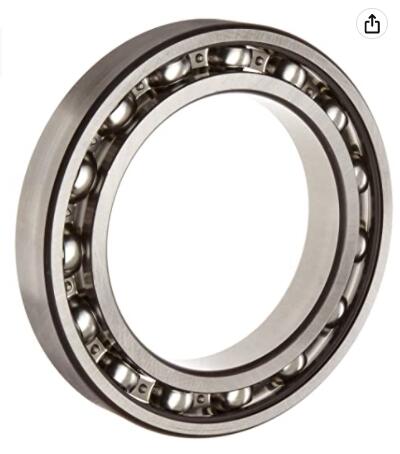

FAG 6009-C3 Deep Groove Ball Bearing, Single Row, Open, Steel Cage, C3 Clearance, Metric, 45mm ID, 75mm OD, 16 mm Wide 22000rpm Maximum Rotational Speed, 3280lbf Static Load Capacity, 4680lbf Dynamic Load Capacity

---
