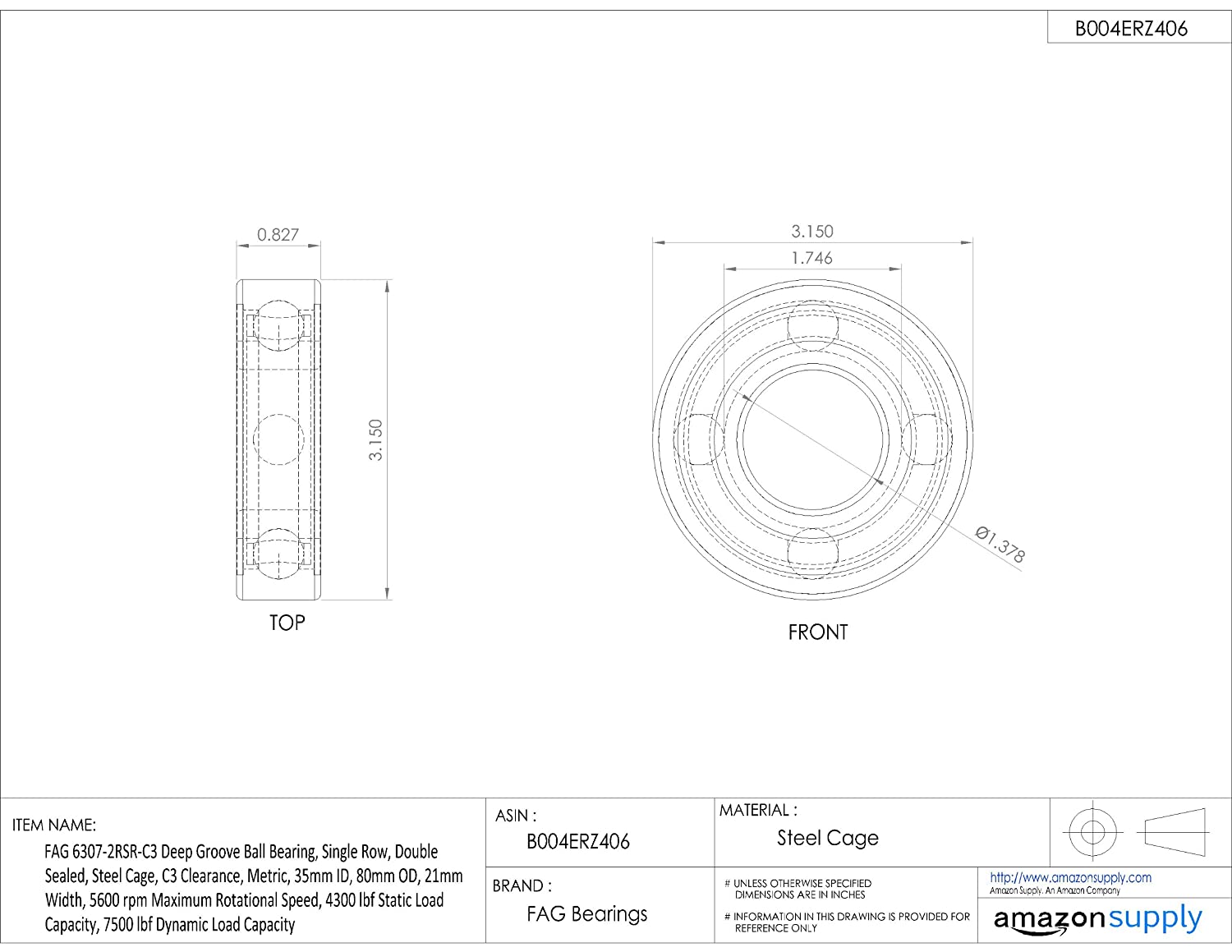

FAG 6307-2RSR-C3 Deep Groove Ball Bearing, Single Row, Double Sealed, Steel Cage, C3 Clearance, Metric, 35mm ID, 80mm OD, 21mm Width, 5600 rpm Maximum Rotational Speed, 4300 lbf Static Load Capacity, 7500 lbf Dynamic Load Capacity


Deep groove geometry for high speeds and supporting both radial and axial loads
“Medium” bearing design for average to above average radial loads and light to average axial loads
C3 radial clearance allows thermal expansion for continuous operating temperatures up to 120 degrees C/248 degrees F
Sheet steel cage evenly spaces balls for reduced friction, vibration, and noise
Rubber seals on both sides of the bearing keep the lubricant in and contaminants out
Specifications for this item
Bearing Number 6307-2RSC3
Bearing Type Ball Bearing
Bore Diameter 35 millimeters
Brand Name FAG Bearings
Compatible Lubricant Type Grease
Dynamic Load Capacity 4300 pounds

Item Diameter 80 millimeters
Item Weight 1.04 pounds
Material Alloy Steel
Maximum Rotational Speed 5600 rpm
Measurement System Metric
Model Number 6307.2RSR.C3
Number of Items 1
Part Number 6307-2RSR-L038-C3
Shield Type Double Sealed
Specification Met Din 623-1 , Din 620-4 , Iso 281 , Din 625-1 , Iso 286 , Iso 683-17 , Din Iso 281 , En 10139 , Sae J403
Static Load Capacity 7500 pounds
UNSPSC Code 31171500
Width 21 millimeters

---
